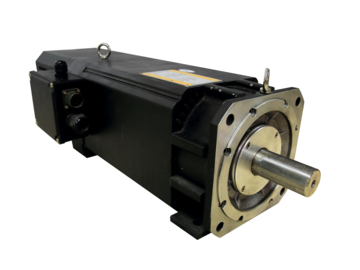

SVMJ 系 列 IP54 SVM-160L 交流伺服向量馬達


額定輸出:40kW~62kW

代碼 TSVMJ-IP54_SVM-160L

人氣 1737





DETAIL 商品詳細說明
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 1000 40 380 79.4 378.6 38.63 0.256 4000 SVM-160L
 SVMF IP54 1500 50 380 99.2 315.5 32.19 0.256 4000 SVM-160L
 SVMF IP54 2000 62 380 123 293.5 29.95 0.256 4000 SVM-160L



Asynchronous SVMJ Series Constant Torque
Constant Horsepower Range 1:4

 Motor(kW) 5.5 7.5 11 15 18.5 22
 Frame Size 132S 132M 132L 132X 160S 160M
 Rated Voltage 360V
 Rated Speed 500/2000rpm
 Rated Torque kg-m 10.7 14.6 21.4 29.2 36 42.8
 Rated Current 12.2 16.6 24.5 33.3 41 44
 Power Factor 0.83 0.835 0.835 0.84 0.83 0.83
 Efficency 0.88 0.88 0.89 0.9 0.9 0.91
 Max speed Nmax
 Standard bearing
5000rpm
 Weight mass(kg) 120 135 167 193 260 351
 Mornent of inertia J kg㎡ 0.065 0.077 0.101 0.12 0.186 0.23
 Protection IP23
 Rated Frequency F rated(HZ) 17.4HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
3.8/2.2A
  50/60HZ
3⊕ 220V/380V
4/2.3A
  50/60HZ



 Motor(kW) 30 37 45 55 75 90~220
 Frame Size 160L 180M 180L 225M 225L Contact us
for further
information
 Rated Voltage 360V
 Rated Speed 500/2000rpm
 Rated Torque kg-m 58.4 72 87.6 107.1 146
 Rated Current 60 90 90 110 150
 Power Factor 0.84 0.84 0.84 0.87 0.86
 Efficency 0.91 0.92 0.93 0.945 0.946
 Max speed Nmax
 Standard bearing
5000rpm
 Weight mass (kg) 370 560 605 750 860
 Mornent of inertia J kg㎡ 0.256 0.666 0.777 1.938 2.326
 Protection IP23
 Rated Frequency F rated (HZ) 17.4HZ 17.3HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
4/2.3A
50/60HZ
3⊕ 220V/380V
7/4A
50/60HZ
3⊕ 220V/380V
13/7.4A
50/60HZ



Asynchronous SVMJ Series Constant Torque
Constant Horsepower Range 1:3

 Motor(kW) 5.5 7.5 11 15 18.5 22 30
 Frame Size 132S 132S 132M 132L 132X 160S 160L
 Rated Voltage 360V
 Rated Speed 600/1800rpm
 Rated Torque kg-m 8.9 12.1 17.8 24.3 30 35.7 48.6
 Rated Current 12.2 16.6 24.4 33.3 41 44 60
 Power Factor 0.83 0.83 0.835 0.835 0.84 0.83 0.83
 Efficency 0.88 0.88 0.89 0.89 0.9 0.9 0.91
 Max speed Nmax
 Standard bearing
6000rpm 5000rpm
 Weight mass(kg) 120 120 135 167 193 260 370
 Mornent of inertia J kg㎡ 0.065 0.065 0.077 0.101 0.12 0.186 0.256
 Protection IP23
 Rated Frequency F rated(HZ) 20.7HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
1⊕ 220V
50/60HZ
3⊕ 220V/380V
3.8/2.2A
50/60HZ
3⊕ 220V/380V
6.6/3.8A
50/60HZ



 Motor(kW) 37 45 55 75 110 120~215
 Frame Size 180M 180M 225S 225M 225L Contact us
for further
information
 Rated Voltage 360V
 Rated Speed 600/1800rpm
 Rated Torque kg-m 60 73 89.2 121.7 146
 Rated Current 74 90 110 150 180
 Power Factor 0.84 0.84 0.87 0.87 0.86
 Efficency 0.92 0.92 0.94 0.945 0.946
 Max speed Nmax
 Standard bearing
4500rpm 4000rpm
 Weight mass(kg) 560 560 630 750 860
 Mornent of inertia J kg㎡ 0.666 0.777 1.479 1.938 2.326
 Protection IP23
 Rated Frequency F rated(HZ) 20.7HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
9/5.2A
50/60HZ
3⊕ 220V/380V
13/7.4A
50/60HZ



Asynchronous SVMJ Series Constant Torque
Constant Horsepower Range 1:2

 Motor(kW) 5.5 7.5 11 15 18.5 22 30 37
 Frame Size 100L 132S 132S 132M 132L 132X 160S 160M
 Rated Voltage 360V
 Rated Speed 900/1800rpm
 Rated Torque kg-m 5.9 8.1 11.9 16.2 20 23.8 32.4 40
 Rated Current 12.2 16.6 24.4 33.3 41 44 60 74
 Efficency 0.85 0.88 0.88 0.89 0.89 0.9 0.9 0.91
 Max speed Nmax
 Standard bearing
6000rpm 5000rpm
 Weight mass(kg) 83 120 135 167 167 193 260 351
 Mornent of inertia J kg㎡ 0.0405 0.065 0.065 0.077 0.101 0.12 0.186 0.23
 Protection IP54 IP23
 Rated Frequency F rated(HZ) 31.2HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
1⊕ 220V
50/60HZ
3⊕ 220V/380V
3.8/2.2A
50/60HZ
3⊕ 220V/380V
6.6/3.8A
50/60HZ



 Motor(kW) 45 55 75 90 110 130 150~220
 Frame Size 160L 180M 180L 225S 225M 225L Contact us
for further
information
 Rated Voltage 360V
 Rated Speed 900/1800rpm
 Rated Torque kg-m 48.6 59.5 81.1 97.3 119 140.6
 Rated Current 90 110 150 180 220 260
 Efficency 0.91 0.92 0.93 0.94 0.945 0.946
 Max speed Nmax
 Standard bearing
5000rpm 4500rpm 4000rpm
 Weight mass(kg) 370 560 605 630 750 860
 Mornent of inertia J kg㎡ 0.256 0.666 0.777 1.479 1.938 2.326
 Protection IP23
 Rated Frequency F rated(HZ) 31.2HZ 31HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
6.6/3.8A
50/60HZ
3⊕ 220V/380V
9/5.2A
50/60HZ
3⊕ 220V/380V
6.6/3.8A
50/60HZ



Asynchronous SVMJ Series Constant Torque
Constant Horsepower Range 1:1

 Motor(kW) 8 12 16 20 22 30
 Frame Size 132S 132M 132L 132X 160S 160M
 Rated Voltage 320V
 Rated Speed 500rpm
 Rated Torque kg-m 15.5 23 29.2 38.9 48.6 58.4
 Rated Current 19.3 28.9 36.2 48 60.3 72.4
 Efficency 0.88 0.88 0.89 0.9 0.9 0.91
 Max speed Nmax
 Standard bearing
8000rpm 6000rpm
 Weight mass(kg) 120 135 167 193 260 351
 Mornent of inertia J kg㎡ 0.065 0.077 0.101 0.12 0.186 0.23
 Protection IP23
 Rated Frequency F rated(HZ) 17.4HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
3.8/2.2A
50/60HZ
3⊕ 220V/380V
6.6/3.8A
50/60HZ



 Motor(kW) 33 40 50 60 75 90
 Frame Size 160L 180M 180L 225S 225M 225L
 Rated Voltage 320V
 Rated Speed 500rpm
 Rated Torque kg-m 64.2 77.7 97.3 116.8 146 175.2
 Rated Current 79.6 93.3 116.7 133.9 168 200.8
 Efficency 0.91 0.92 0.93 0.94 0.945 0.946
 Max speed Nmax
 Standard bearing
6000rpm 5000rpm 4500rpm
 Weight mass(kg) 370 560 605 730 750 860
 Mornent of inertia J kg㎡ 0.256 0.666 0.777 1.479 1.93 2.326
 Protection IP23
 Rated Frequency F rated (HZ) 17.4HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
6.6/3.8A
50/60HZ
3⊕ 220V/380V
9/5.2A
50/60HZ
3⊕ 220V/380V
13/7.4A
50/60HZ



Asynchronous SVMJ Series
Constant Torque Rated 1000 rpm

 Motor(kW) 15 22 30 37 45 55 60
 Frame Size 132S 132M 132L 132X 160S 160M 160L
 Rated Voltage 320V
 Rated Speed 1000rpm
 Rated Torque kg-m 14.6 21.4 29.2 36 43.8 53.5 58.4
 Rated Current 35 52 79 87 106 129 141
 Efficency 0.88 0.88 0.89 0.9 0.9 0.91 0.91
 Max speed Nmax
 Standard bearing
8000rpm 6000rpm
 Weight mass(kg) 120 135 167 193 260 351 370
 Mornent of inertia J kg㎡ 0.065 0.077 0.101 0.12 0.186 0.23 0.256
 Protection IP23
 Rated Frequency F rated(HZ) 33.3HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
3.8/2.2A
50/60HZ
3⊕ 220V/380V
6.6/3.8A
50/60HZ



 Motor(kW) 65 80 95 110 140 165
 Frame Size 180S 180M 180L 225S 225M 225L
 Rated Voltage 320V
 Rated Speed 1000rpm
 Rated Torque kg-m 63.2 77.8 92.5 107.1 136.3 160.6
 Rated Current 153 189 224 259 330 389
 Efficency 0.92 0.92 0.93 1.479 1.938 2.326
 Max speed Nmax
 Standard bearing
5000rpm 4500rpm
 Weight mass(kg) 470 560 605 730 750 860
 Mornent of inertia J kg㎡ 0.503 0.666 0.777 1.479 1.938 2.326
 Protection IP23
 Rated Frequency F rated (HZ) 33.3HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
9/5.2A
50/60HZ
3⊕ 220V/380V
13/7.4A
50/60HZ


Asynchronous SVMJ Series
Constant Torque Rated 1500 rpm
 Motor(kW) 22 30 37 45 55 65 75
 Frame Size 132S 132M 132L 132X 160S 160M 160L
 Rated Voltage 360V
 Rated Speed 1500rpm
 Rated Torque kg-m 14.6 19.4 24 29.2 35.7 42.1 48.7
 Rated Current 47.1 64.3 79.3 96.5 115.3 136.3 157.5
 Efficency 0.88 0.88 0.89 0.9 0.9 0.91 0.91
 Max speed Nmax
 Standard bearing
8000rpm 6000rpm
 Weight mass(kg) 120 135 167 193 260 351 370
 Mornent of inertia J kg㎡ 0.065 0.077 0.101 0.12 0.186 0.23 0.256
 Protection IP23
 Rated Frequency F rated(HZ) 33.3HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
3.8/2.2A
50/60HZ
3⊕ 220V/380V
6.6/3.8A
50/60HZ



 Motor(kW) 90 110 130 150 190 230
 Frame Size 180S 180M 180L 225S 225M 225L
 Rated Voltage 360V
 Rated Speed 1500rpm
 Rated Torque kg-m 58.4 71.4 84.3 97.4 123.3 149.3
 Rated Current 186 228 269 297 377 456
 Efficency 0.92 0.92 0.93 1.479 1.938 2.326
 Max speed Nmax
 Standard bearing
5000rpm 4500rpm
 Weight mass(kg) 470 560 605 730 750 860
 Mornent of inertia J kg㎡ 0.503 0.666 0.777 1.479 1.938 2.326
 Protection IP23
 Rated Frequency F rated (HZ) 33.3HZ
 Fan Rated Voltagt UL
 Rated Current Frequency FL
3⊕ 220V/380V
9/5.2A
50/60HZ
3⊕ 220V/380V
13/7.4A
50/60HZ


Asynchronous SVMN-Li Series Constant Torque
Very Low Intertia Servo Motor
 Motor(kW) 41.9 55 86.4 110 150 220 300
 Frame Size 180M 180P 225P 280MX 280PX 280X 335P
 Rated Voltage 300V
 Rated Speed 500rpm
 Rated Torque kg-m 81.63 107.14 168.36 226.02 292.34 429.38 584.22
 Max Torque kg-m 163.26 214.28 336.72 452.04 584.68 858.76 1168.44
 Overload% 200
 Rated Current 117A 154A 242A 338A 465A 671A 700A
 Weight mass(kg) 460 650 1000 1450 1950 1950
 Mornent of inertia J kg㎡ 2.144 2.144 5 7.28 9.32 18.6
 Protection IP23
 Insulation Class F




Asynchronous SVMN-S Series Constant Torque
Very Low Intertia Servo Motor
 Motor(kW) 43.8 55 75.2 110 150 190
 Frame Size 180NM 180NL 225NL 225NX 280M 280P
 Rated Voltage 300V
 Rated Speed 500rpm
 Rated Torque kg-m 85.4 107.14 146.53 214.38 314.28 370
 Max Torque kg-m 183.6 204.08 275.51 387.75 540.81 684.5
 Overload% 215 190 189 181 185 185
 Rated Current 120A 151A 204A 297A 400A 462A
 Weight mass(kg) 475 530 900 1185 1370 1800
 Mornent of inertia J kg㎡ 2.76 2.76 6.6 13.4 17.4 21
 Protection IP23
 Insulation Class F
