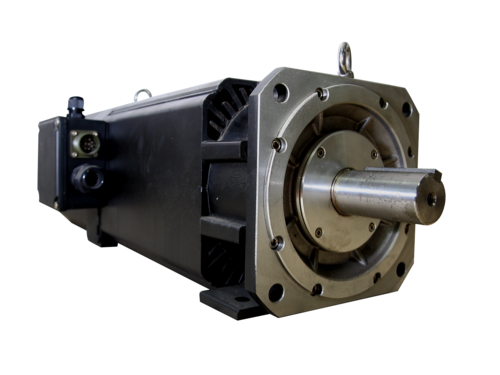

SVMF系列 IP54 SF-90MB交流伺服向量馬達


額定輸出:1.1kW~1.5kW

代碼 TSVMF-IP54_SF-90MB

人氣 3225





DETAIL 商品詳細說明
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 1000 1.1 360 2.8 10.4 1.07 0.0038 8000 SF-90MB
 SVMF IP54 1500 1.5 380 3.3 10.1 1.04 0.0038 8000 SF-90MB

Motor(kW) 1.1 1.5 2 2.5 1.6 2.2
 Frame Size 90MA 90MA 90MA 90MA 90MB 90MB Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1500                    2000                   3000                    4000                   1500                   2000
 Rated Torque kg-m 0.72 0.74 0.65 0.61 1.04 1.08
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 83.8% 83.8% 83.8% 83.8% 83.7% 83.7%
 Max speed Nmax
 Standard bearing
8000 8000 8000
 Weight mass(kg) 16.4 16.4 16.4 16.4 18.9 18.9
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP54
 Rated Frequency F rated(HZ) 52.6           69.9                   102.8                   136.2                    53.0                     70.3
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 3 4.2 2.7 3.7 5.1 6.4
 Frame Size 90MB 90MB 90L 90L 90L 90L Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          3000                    4000
 Rated Torque kg-m 1.03 1.02 1.76 1.81 1.66 1.56
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 83.7% 83.7% 84.3% 84.3% 84.3% 84.3%
 Max speed Nmax
 Standard bearing
8000 8000 8000
 Weight mass(kg) 18.9 18.9 26.0 26.0 26.0 26.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP54
 Rated Frequency F rated(HZ) 103.3          137.1                    52.8                    70.8                    103.3                  136.4
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A
