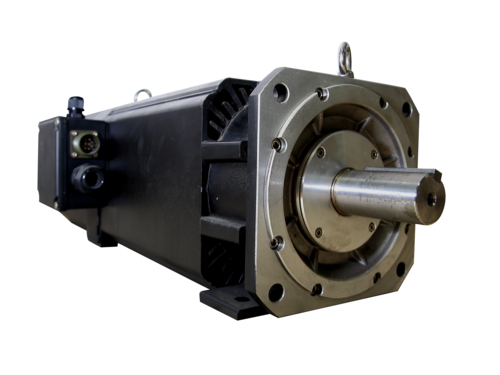

.png "SVMF系列 IP54 SF-90MA交流伺服向量馬達 |產品介紹|繁中版|交流伺服馬達")
.png)
DETAIL 商品詳細說明
| Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |
| SVMF IP54 | 1000 | 0.75 | 360 | 2 | 7.16 | 0.73 | 0.003 | 8000 | SF-90MA |
| SVMF IP54 | 1500 | 1.1 | 380 | 2.6 | 7.1 | 0.72 | 0.003 | 8000 | SF-90MA |
| Motor(kW) | 1.1 | 1.5 | 2 | 2.5 | 1.6 | 2.2 | |
| Frame Size | 90MA | 90MA | 90MA | 90MA | 90MB | 90MB | Contact us for further information |
| Rated Voltage | N/A | ||||||
| Rated Speed | 1500 2000 3000 4000 1500 2000 | ||||||
| Rated Torque kg-m | 0.72 | 0.74 | 0.65 | 0.61 | 1.04 | 1.08 | |
| Rated Current | N/A | N/A | N/A | N/A | N/A | N/A | |
| Efficency | 83.8% | 83.8% | 83.8% | 83.8% | 83.7% | 83.7% | |
| Max speed Nmax Standard bearing |
8000 | 8000 | 8000 | ||||
| Weight mass(kg) | 16.4 | 16.4 | 16.4 | 16.4 | 18.9 | 18.9 | |
| Mornent of inertia J kg㎡ | N/A | N/A | N/A | N/A | N/A | N/A | |
| Protection | IP54 | ||||||
| Rated Frequency F rated(HZ) | 52.6 | 69.9 102.8 136.2 53.0 70.3 | |||||
| Fan Rated Voltagt UL Rated Current Frequency FL |
N/A | N/A | N/A | ||||
| Motor(kW) | 3 | 4.2 | 2.7 | 3.7 | 5.1 | 6.4 | |
| Frame Size | 90MB | 90MB | 90L | 90L | 90L | 90L | Contact us for further information |
| Rated Voltage | N/A | ||||||
| Rated Speed | 3000 4000 | ||||||
| Rated Torque kg-m | 1.03 | 1.02 | 1.76 | 1.81 | 1.66 | 1.56 | |
| Rated Current | N/A | N/A | N/A | N/A | N/A | N/A | |
| Efficency | 83.7% | 83.7% | 84.3% | 84.3% | 84.3% | 84.3% | |
| Max speed Nmax Standard bearing |
8000 | 8000 | 8000 | ||||
| Weight mass(kg) | 18.9 | 18.9 | 26.0 | 26.0 | 26.0 | 26.0 | |
| Mornent of inertia J kg㎡ | N/A | N/A | N/A | N/A | N/A | N/A | |
| Protection | IP54 | ||||||
| Rated Frequency F rated(HZ) | 103.3 | 137.1 52.8 70.8 103.3 136.4 | |||||
| Fan Rated Voltagt UL Rated Current Frequency FL |
N/A | N/A | N/A | ||||
