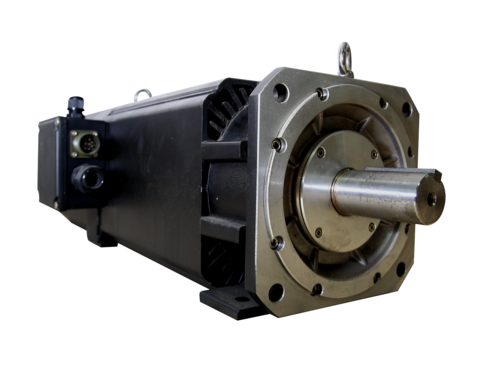

SVMF系列 IP54 SF-160L交流伺服向量馬達


額定輸出:11kW~37kW

代碼 TSVMF-IP54_SF-160L

人氣 2495





DETAIL 商品詳細說明
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 500 11 360 25 208.2 21.4 0.2427 4500 SF-160L
 SVMF IP54 1000 25 360 51.8 236.6 24.3 0.2427 4500 SF-160L
 SVMF IP54 1500 37 380 71.3 215.4 22.2 0.2427 4500 SF-160L




Motor(kW) 37 45 60 75 22 30
 Frame Size 160L 160L 160L 160L 160S 160S Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1500                    2000                  3000                    4000                    1500                   2000
 Rated Torque kg-m 22.16 21.93 19.5 18.3 14.31 14.63
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 95.1% 95.1% 95.1% 95.1% 94.6% 94.6%
 Max speed Nmax
 Standard bearing
4500 4500           4500
 Weight mass(kg) 280.0 280.0 280.0 280.0 220.0 220.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP54
 Rated Frequency F rated(HZ) 51           67.5                    100.7                   133.3                   50.9                    67.5
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 40 50 28 37 52 63
 Frame Size 160S 160S 160M 160M 160M 160M Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          3000                    4000                   1500                    2000                   3000                   4000
 Rated Torque kg-m 13.0 12.2 18.18 18.07 16.9 15.3
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 94.6% 94.6% 95.1% 95.1% 95.1% 95.1%
 Max speed Nmax
 Standard bearing
4500 4500 4500
 Weight mass(kg) 220.0 220.0 250.0 250.0 250.0 250.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP54
 Rated Frequency F rated(HZ) 100.0          134.1                   50.8                    67.6                     100.0                  133.3
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 45 55 75 90
 Frame Size 160X 160X 160X 160X     Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1500                    2000                   3000                    4000
 Rated Torque kg-m 29.23 26.88 24.3 21.9
 Rated Current N/A N/A N/A N/A
 Efficency 95.2% 95.2% 95.2% 95.2%
 Max speed Nmax
 Standard bearing
4500 4500          4500
 Weight mass(kg) 330.0 330.0 330.0 330.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A
 Protection IP54
 Rated Frequency F rated(HZ) 50.8           67.5                   100.0                   133.3
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A
