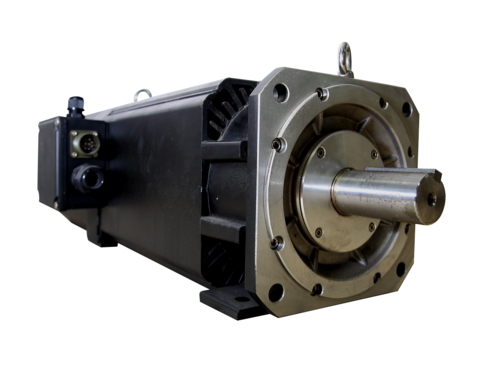

.png "SVMF系列 IP54 SF-132LA交流伺服向量馬達 |產品介紹|繁中版|交流伺服馬達")
.png)
DETAIL 商品詳細說明
| Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |
| SVMF IP54 | 1000 | 15 | 360 | 31.1 | 142 | 14.6 | 0.0735 | 6000 | SF-132LA |
| Motor(kW) | 16.5 | 22.0 | 31.0 | 37.4 | 11.0 | 15.0 | |
| Frame Size | 132L | 132L | 132L | 132L | 132MA | 132MA | Contact us for further information |
| Rated Voltage | N/A | ||||||
| Rated Speed | 1500 2000 3000 4000 1500 2000 | ||||||
| Rated Torque kg-m | 10.72 | 10.72 | 10.07 | 9.1 | 7.14 | 7.31 | |
| Rated Current | N/A | N/A | N/A | N/A | N/A | N/A | |
| Efficency | 92.1% | 92.1% | 92.1% | 92.1% | 90.2% | 90.2% | |
| Max speed Nmax Standard bearing |
6000 | 6000 | 6000 | ||||
| Weight mass(kg) | 107.0 | 107.0 | 107.0 | 107.0 | 77.5 | 77.5 | |
| Mornent of inertia J kg㎡ | N/A | N/A | N/A | N/A | N/A | N/A | |
| Protection | IP54 | ||||||
| Rated Frequency F rated(HZ) | 51.5 | 68.1 101.5 133.3 51.7 68.7 | |||||
| Fan Rated Voltagt UL Rated Current Frequency FL |
N/A | N/A | N/A | ||||
| Motor(kW) | 22 | 30 | 40 | 50 | |||
| Frame Size | 132LA | 132LA | 132LA | 132LA | Contact us for further information |
||
| Rated Voltage | N/A | ||||||
| Rated Speed | 1500 2000 3000 4000 | ||||||
| Rated Torque kg-m | 14.2 | 14.62 | 13 | 12.4 | |||
| Rated Current | N/A | N/A | N/A | N/A | |||
| Efficency | |||||||
| Max speed Nmax Standard bearing |
6000 | 6000 | 6000 | ||||
| Weight mass(kg) | 123.0 | 123.0 | 123.0 | 123.0 | |||
| Mornent of inertia J kg㎡ | N/A | N/A | N/A | N/A | |||
| Protection | IP54 | ||||||
| Rated Frequency F rated(HZ) | 51.7 | 68.5 100.0 133.3 | |||||
| Fan Rated Voltagt UL Rated Current Frequency FL |
N/A | N/A | |||||
