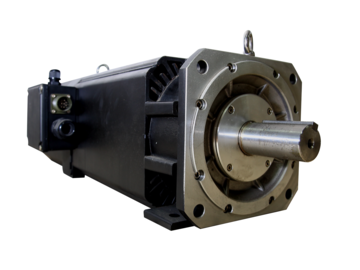

SVMF系列 IP54 SF-112L交流伺服向量馬達


額定輸出:3.7kW~5.5kW

代碼 TSVMF-IP54_SF-112L

人氣 2804





DETAIL 商品詳細說明
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 1000 3.7 360 7.6 35 3.6 0.0153 7000 SF-112L
 SVMF IP54 1500 5.5 380 10.6 35 3.6 0.0153 7000 SF-112L



Motor(kW) 5.5 7.5 10.0 12.0 8.2 11.0
 Frame Size 112L 112L 112L 112L 112XA 112XA Contact us
for further
information
 Rated Voltage
 Rated Speed          1500                    2000                   3000                    4000                   1500                    2000
 Rated Torque kg-m 3.58 3.66 3.25 2.93 5.3 5.37
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 90.0% 90.0% 90.0% 90.0% 90.5% 90.5%
 Max speed Nmax
 Standard bearing
7000 7000           7000                   7000                    7000
 Weight mass(kg) 45 45 45 45 65 65
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP54
 Rated Frequency F rated(HZ) 52.1           69.0                   102.1                   135.5                    52.4                    69.0
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 15.0 16.5 11.0 15.0 20.0 25.0
 Frame Size 112XA 112XA 112XB 112XB 112XB 112XB Contact us
for further
information
 Rated Voltage
 Rated Speed         3000                    4000                    1500                    2000                   3000                   4000
 Rated Torque kg-m 4.7 3.8 7.27 7.31 6.5 6.1
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 90.5% 90.5% 90.5% 90.5% 90.5% 90.5%
 Max speed Nmax
 Standard bearing
7000 7000           7000                  7000                    7000
 Weight mass(kg) 65 65 72.0 72.0 72.0 72.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP54
 Rated Frequency F rated(HZ) 102.0          134.6                    52.4                     69.1                  101.6                   133.3
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A
