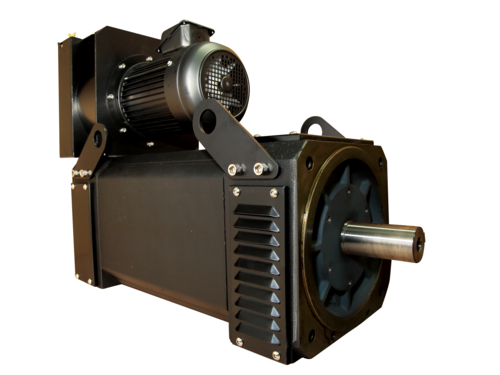

SVMF系列 IP23 SA-180M交流伺服向量馬達


額定輸出:22kW~90kW

代碼 TSVMF-IP23_SA-180M

人氣 2330





DETAIL 商品詳細說明
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP23 500 30 360 67 567.8 58.4 0.7369 3500 SA-180M
 SVMF IP23 1000 60 360 128.1 568.6 58.5 0.7369 3500 SA-180M
 SVMF IP23 1500 100 380 197.3 637 65 0.7369 3500 SA-180M
 SVMF IP23 600/1800 37 360 75 583.6 60 0.7369 3500 SA-180M
 SVMF IP23 500/2000 22 360 60.2 416.4 42.8 0.7369 3500 SA-180M







Motor(kW) 37 55 69 90 50 75
 Frame Size 180P 180P 180P 180P 180S 180S Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1000                    1500                   2000                    3000                   1000                   1500
 Rated Torque kg-m 36.1 35.8 33.5 29.3 48.7 48.76
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 92.8% 92.8% 92.8% 92.8% 92.7% 92.7%
 Max speed Nmax
 Standard bearing
3500 3500 3500
 Weight mass(kg) 345 345 345 345 390 390
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 51.1           76.0                    101.2                   151.2                   51.2                    76.1
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 94 124 60 90 113 149
 Frame Size 180S 180S 180M 180M 180M 180M Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          2000                    3000                   1000                   1500                    2000                   3000
 Rated Torque kg-m 45.9 40.1 58.5 58.52 55.1 48.2
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 92.7% 92.7% 93.8% 93.8% 93.8% 93.8%
 Max speed Nmax
 Standard bearing
3500 3500 3500
 Weight mass(kg) 390 390 430 430 430 430
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 101.1          151.1                   51.1                     75.7                   101.3                    151.2
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 73 110 138 181 90 132
 Frame Size 180L 180L 180L 180L 180X 180X Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1000                    1500                   2000                    3000                   1000                   1500
 Rated Torque kg-m 71.5 71.47 67.1 58.9 87.7 85.8
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 93.0% 93.0% 93.0% 93.0% 92.8% 92.8%
 Max speed Nmax
 Standard bearing
3500 3500 3500
 Weight mass(kg) 505 505 505 505 560 560
 Mornent of inertia J kg㎡ N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 51.2           76.0                   101.2                    151.2                   51.2                    76.1
   Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A
