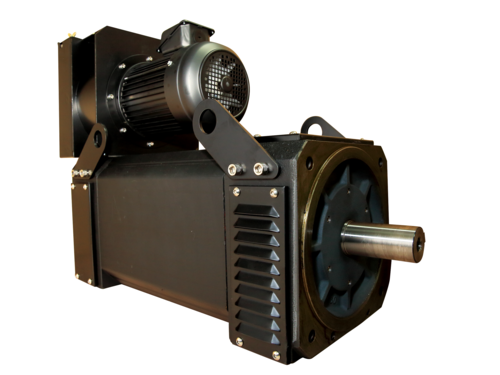

SVMF系列 IP23 SA-160X交流伺服向量馬達


額定輸出:18.5kW~55kW

代碼 TSVMF-IP23_SA-160X

人氣 2327





DETAIL 商品詳細說明
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP23 500 22 360 49 416.4 42.8 0.3023 4500 SA-160X
 SVMF IP23 1500 55 380 108.7 347.8 35.8 0.3023 4500 SA-160X
 SVMF IP23 900/1800 45 360 93 473.3 48.7 0.299 4500 SA-160X
 SVMF IP23 600/1800 22 360 45.5 347 35.7 0.3023 4500 SA-160X
 SVMF IP23 500/2000 18.5 360 40.4 350.2 36 0.3023 4500 SA-160X





Motor(kW) 22 30 40 50 28 37
 Frame Size 160S 160S 160S 160S 160M 160M Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1500                    2000                   3000                   4000                    1500                   2000
 Rated Torque kg-m 14.31 14.63 13.0 12.2 18.18 18.07
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 94.6% 94.6% 94.6% 94.6% 95.1% 95.1%
 Max speed Nmax
 Standard bearing
4500 4500 4500
 Weight mass(kg) 240.0 240.0 240.0 240.0 270.0 270.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 50.9           67.6                   100.8                    134.1                   50.8                     67.6
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 52 63 37 45 60 75
 Frame Size 160M 160M 160L 160L 160L 160L Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          3000                    4000                   1500                    2000                   3000                   4000
 Rated Torque kg-m 16.9 15.3 24.11 21.93 19.5 18.3
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 95.1% 95.1% 95.1% 95.1% 95.1% 95.1%
 Max speed Nmax
 Standard bearing
4500 4500 4500
 Weight mass(kg) 270.0 270.0 300.0 300.0 300.0 300.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 100.6          133.3                   51.0                     67.5                    100.7                  133.3
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 45 55 75 90
 Frame Size 160X 160X 160X 160X     Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1500                    2000                   3000                   4000
 Rated Torque kg-m 29.23 26.88 24.3 21.9
 Rated Current N/A N/A N/A N/A
 Efficency 95.4% 95.4% 95.4% 95.4%
 Max speed Nmax
 Standard bearing
4500 4500           4500
 Weight mass(kg) 350.0 350.0 350.0 350.0
 Mornent of inertia J kg㎡ N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 50.9          67.5                    100.8                   133.3
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A
