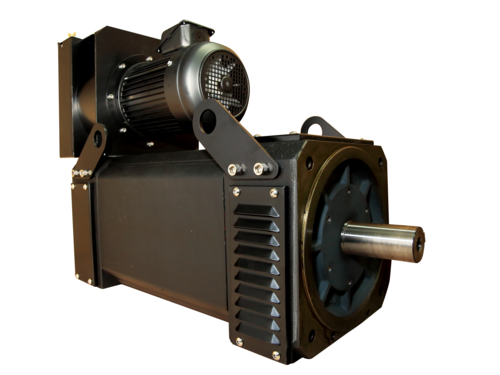

.png "SVMF系列 IP23 SA-160L交流伺服向量馬達")
.png)
DETAIL 商品詳細說明
| Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |
| SVMF IP23 | 900/1800 | 37 | 360 | 75.2 | 388.8 | 40 | 0.252 | 4500 | SA-160L |
| SVMF IP23 | 600/1800 | 18.5 | 360 | 42 | 291.8 | 30 | 0.2427 | 4500 | SA-160L |
| SVMF IP23 | 500/2000 | 15 | 360 | 32.2 | 283.9 | 29.2 | 0.2427 | 4500 | SA-160L |
| Motor(kW) | 22 | 30 | 40 | 50 | 28 | 37 | |
| Frame Size | 160S | 160S | 160S | 160S | 160M | 160M | Contact us for further information |
| Rated Voltage | N/A | ||||||
| Rated Speed | 1500 2000 3000 4000 1500 2000 | ||||||
| Rated Torque kg-m | 14.31 | 14.63 | 13.0 | 12.2 | 18.18 | 18.07 | |
| Rated Current | N/A | N/A | N/A | N/A | N/A | N/A | |
| Efficency | 94.6% | 94.6% | 94.6% | 94.6% | 95.1% | 95.1% | |
| Max speed Nmax Standard bearing |
4500 | 4500 | 4500 | ||||
| Weight mass(kg) | 240.0 | 240.0 | 240.0 | 240.0 | 270.0 | 270.0 | |
| Mornent of inertia J kg㎡ | N/A | N/A | N/A | N/A | N/A | N/A | |
| Protection | IP23 | ||||||
| Rated Frequency F rated(HZ) | 50.9 | 67.6 100.8 134.1 50.8 67.6 | |||||
| Fan Rated Voltagt UL Rated Current Frequency FL |
N/A | N/A | N/A | ||||
| Motor(kW) | 52 | 63 | 37 | 45 | 60 | 75 | |
| Frame Size | 160M | 160M | 160L | 160L | 160L | 160L | Contact us for further information |
| Rated Voltage | N/A | ||||||
| Rated Speed | 3000 4000 1500 2000 3000 4000 | ||||||
| Rated Torque kg-m | 16.9 | 15.3 | 24.11 | 21.93 | 19.5 | 18.3 | |
| Rated Current | N/A | N/A | N/A | N/A | N/A | N/A | |
| Efficency | 95.1% | 95.1% | 95.1% | 95.1% | 95.1% | 95.1% | |
| Max speed Nmax Standard bearing |
4500 | 4500 | 4500 | ||||
| Weight mass(kg) | 270.0 | 270.0 | 300.0 | 300.0 | 300.0 | 300.0 | |
| Mornent of inertia J kg㎡ | N/A | N/A | N/A | N/A | N/A | N/A | |
| Protection | IP23 | ||||||
| Rated Frequency F rated(HZ) | 100.6 | 133.3 51.0 67.5 100.7 133.3 | |||||
| Fan Rated Voltagt UL Rated Current Frequency FL |
N/A | N/A | N/A | ||||
| Motor(kW) | 45 | 55 | 75 | 90 | |||
| Frame Size | 160X | 160X | 160X | 160X | Contact us for further information |
||
| Rated Voltage | N/A | ||||||
| Rated Speed | 1500 2000 3000 4000 | ||||||
| Rated Torque kg-m | 29.23 | 26.88 | 24.3 | 21.9 | |||
| Rated Current | N/A | N/A | N/A | N/A | |||
| Efficency | 95.4% | 95.4% | 95.4% | 95.4% | |||
| Max speed Nmax Standard bearing |
4500 | 4500 | 4500 | ||||
| Weight mass(kg) | 350.0 | 350.0 | 350.0 | 350.0 | |||
| Mornent of inertia J kg㎡ | N/A | N/A | N/A | N/A | |||
| Protection | IP23 | ||||||
| Rated Frequency F rated(HZ) | 50.9 | 67.5 100.8 133.3 | |||||
| Fan Rated Voltagt UL Rated Current Frequency FL |
N/A | N/A | |||||
