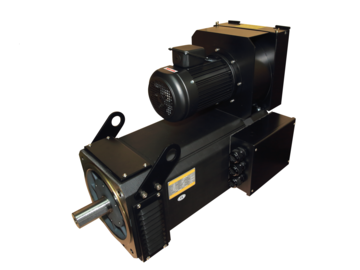

SVMJ Series IP23 SA-225L AC Servo Vector Motor


Rated Output:165kW~288kW

代碼 ESVMJ-IP23_SA-225L

人氣 1785





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMJ IP23 1000 165 380 308.1 1573 160.5 2.326 4500 SA-225L
 SVMJ IP23 1500 230 380 429.5 1463 149.3 2.326 4500 SA-225L
 SVMJ IP23 2000 288 380 537.9 1374 140.2 2.326 4500 SA-225L
