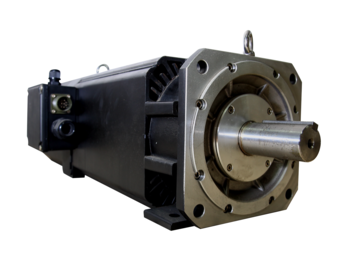

SVMF Series IP54 SF-90L AC Servo Vector Motor


Rated Output:1.5kW~2.2kW

代碼 ESVMF-IP54_SF-90L

人氣 2160





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 1000 1.5 360 3.4 14.2 1.46 0.0059 8000 SF-90L
 SVMF IP54 1500 2.2 380 5.6 17 1.75 0.0059 8000 SF-90L
