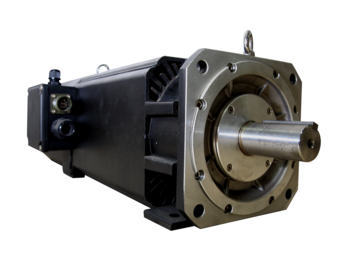

Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |
SVMF IP54 | 500 | 45 | 360 | 101 | 851.8 | 87.6 | 1.0479 | 3500 | SF-180X |
SVMF IP54 | 1000 | 90 | 360 | 193.3 | 851.1 | 87.6 | 1.0479 | 3500 | SF-180X |
SVMF IP54 | 1500 | 132 | 380 | 269 | 833.9 | 85.8 | 1.0479 | 3000 | SF-180X |
