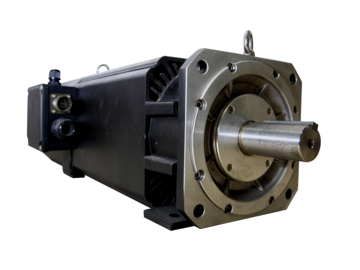

DETAIL Description of the Product
| Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |
| SVMF IP54 | 500 | 25 | 360 | 56 | 473.2 | 48.7 | 0.6466 | 3500 | SF-180S |
| SVMF IP54 | 1000 | 50 | 360 | 106.9 | 473.2 | 48.7 | 0.6466 | 3500 | SF-180S |
| SVMF IP54 | 1500 | 75 | 380 | 157 | 473.9 | 48.8 | 0.6466 | 3000 | SF-180S |
