Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |

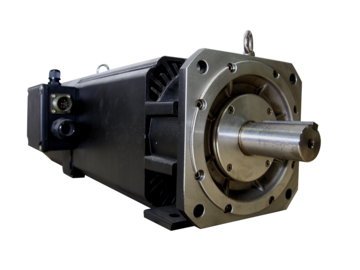

SVMF IP54 | 500 | 30 | 360 | 67 | 567.8 | 58.4 | 0.7369 | 3500 | SF-180M |
SVMF IP54 | 1000 | 60 | 360 | 128.1 | 567.8 | 58.4 | 0.7369 | 3500 | SF-180M |
SVMF IP54 | 1500 | 90 | 380 | 193 | 568.8 | 58.5 | 0.7369 | 3000 | SF-180M |
