SVMF Series IP54 SF-160X AC Servo Vector Motor  |產品介紹|English|AC Servo Motor

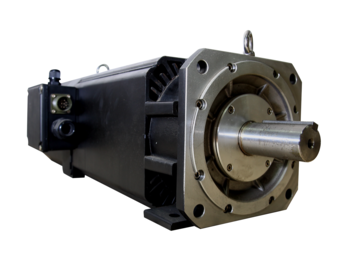

SVMF Series IP54 SF-160X AC Servo Vector Motor


Rated Output:15kW~45kW

代碼 ESVMF-IP54_SF-160X

人氣 2189





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 500 15 360 34 283.9 29.2 0.3023 4500 SF-160X
 SVMF IP54 1000 30 360 62.2 283.9 29.2 0.3023 4500 SF-160X
 SVMF IP54 1500 45 380 88.9 284.1 29.2 0.3023 4500 SF-160X
