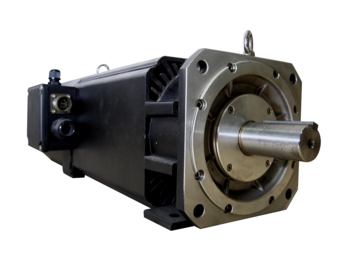

DETAIL Description of the Product
| Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |
| SVMF IP54 | 1000 | 5.5 | 360 | 11.6 | 51.5 | 5.3 | 0.0212 | 7000 | SF-112XA |
| SVMF IP54 | 1500 | 7.5 | 380 | 15.2 | 51.5 | 5.3 | 0.0212 | 7000 | SF-112XA |
