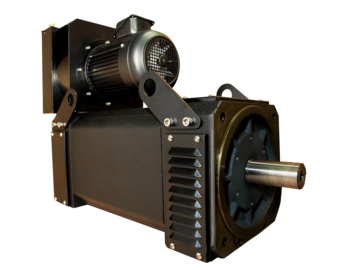

SVMF Series IP23 SA-132L AC Servo Vector Motor


Rated Output:15kW~37kW

代碼 ESVMF-IP23_SA-132L

人氣 2101





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP23 500 15 360 35 283.9 29.2 0.0685 6000 SA-132L
 SVMF IP23 1000 30 360 64.9 284.2 29.2 0.0685 6000 SA-132L
 SVMF IP23 1500 37 380 75.7 234.2 24.1 0.0685 6000 SA-132L
 SVMF IP23 900/1800 22 380 44.5 208 21.4 0.0685 6000 SA-132L
