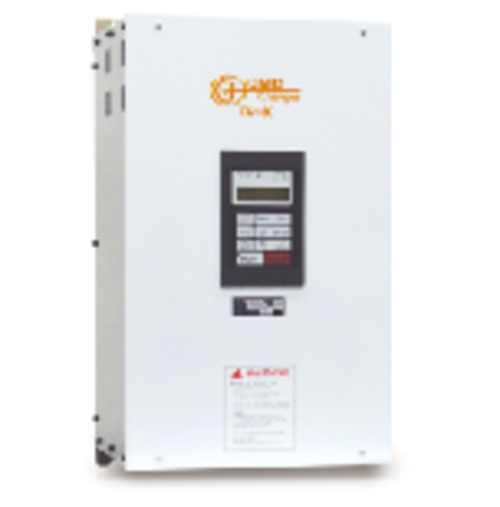

VFI-CG80 Serie 440V 40HP Vector Servo Drive


CG80 is provided with four control modes: open loop vector, flux vector, V/f control and V/f control with PG feedback. Variable & Multiple combination, Quickly meet customer needs.

代碼 ECMG_DRU-4030C

人氣 1875





DETAIL Description of the Product



【Dimensions】


                                                                                                                                                             Unit:mm
Specification Voltage Capacity W W1 H H1 D
20P7~23P7 220V 1HP~5HP 135 84 288 278 180
25P5~27P5 7.5HP~10HP 224 170 310 296.4 198
2011 15HP 254 200 435 420.5 198
2015~2018 20HP~25HP 254 200 467 453.5 218
2022~2030 30HP~40HP 294 240 555 536.8 218
2037 50HP 372 250 650 630 260
2045 60HP 372 250 723 705 260
2045 75HP~100HP 372 250 823 805 260
40P7~43P7 440V 1HP~5HP 135 84 288 278 180
45P5~4011 7.5HP~15HP 224 170 310 296.4 198
4015~4018 20HP~25HP 254 200 435 420.5 198
4022 30HP 254 200 467 453.5 218
4030~4037 40HP~50HP 294 240 555 536.8 218
4045~4055 60HP~75HP 372 250 650 630 260
4075 100HP 372 250 723 705 260
4090 125HP 372 250 823 805 260




                                                                                                                                                                              Unit:mm
Specification Voltage Capacity W W1 W2 H H1 D
2090 220V 125HP 622.4 500 250 754 734 315
2110 150HP 622.4 500 250 903 883 315
4110~4150 440V 150HP~200HP 622.4 500 250 754 734 315
4180 250HP 622.4 500 250 903 883 315
4220~4315 300HP~420HP 622.4 500 250 1110 1090 338



【Standard Inverter Specifications】


220V Class
Model No.CG80 21P5 22P2 23P7 25P5 27P5 2011 2015 2018 2022 2030 2037 2045 2055 2075 2090 2110
Max applicable
motor output(kW)
1.5 2.2 3.7 5.5 7.5 11 15 18 22 30 37 45 55 75 90 110
Rated output
capacity(KVA)
3.0 4.2 6.7 9.5 13 19 24 30 37 50 61 70 85 110 140 160
Rated output
current(A)
8 11 17.5 25 33 49 64 80 96 130 160 183 224 300 358 415

440V Class
Model No.CG80 41P5 42P2 43P7 45P5 47P5 4011 4015 4018 4022 4030 4037 4045 4055 4075 4090 4110 4132 4160 4185 4220 4315
Max applicable
motor output(kW)
1.5 2.2 3.7 5.5 7.5 11 15 18 22 30 37 45 55 75 90 110 132 160 185 220 315
Rated output
capacity(KVA)
3.7 4.7 6.1 11 14 21 26 31 37 50 61 73 98 130 150 170 210 230 260 340 480
Rated output
current(A)
4.8 6.2 8 14 18 27 34 41 48 65 80 96 128 165 195 224 270 302 340 450 630



Standard Inverter Characteristic】

Item 200V Class 400V Class
Power
supply
Max. output voltage(V) 3-phose, 220/240V(Proportional voltage) 3-phose, 380/480V(Proportional voltage)
Rated output frequency (Hz) Up to 400HZ (avaliable by programming)
Voltage(V) Frequency(Hz) 3-phose, 220~240 50/60Hz 3-phose, 380~480 50/60Hz
Allowable voltage function +10% , -15%
Allowable frequency function ±5%
Control
characteristics
Control method Sine wave PWM
Torque characteristics (1Hz of 150%)(0rpm/min of 150% with PG)
Speed control range 1:100(1:1000 with PG)
Speed control accuracy ±0.2%(±0.02% with PG)
Speed control response 5Hz(30Hz with PG)
Torque limits Provided (4 quadrant steps can be changed by constant settings)
Torque accuracy ±5%
Frequency control range 0.1~400Hz
Frequency accuracy
(temperature characteristics)
Digital references: ±0.01%(-10℃~+40℃)
Analog references: ±0.1%(25℃ ±10℃)
Frequency setting resolution Digital references:±0.01Hz
Analog references:±0.03Hz/60Hz (11bit+code)
Output frequency resolution 0.001Hz
Overload capacity 150% of rated current for one minute
Frequency setting signal -10~+10V, 0~10V(20kΩ), 4~20mA
Acceleration/Deceleration time 0.01~6000.0(4 selectable combinations of independent acceleration and deceleration settings )
Braking torque Approximately 20%
Protective
functors
Motor protection Protection by electronic thermal overload relay.
Instantaneous overcurrent protection Stops at approx., 200% of rated output current.
Fuse blown protection Stop for fuse blown.
Overload protection Stops in one minute of approx., 150% of rated output current.
Overvoltage protection 200V Class:Stops when main-circult DC voltage
is approx.,410V.
400V Class:Stops when main-circult DC voltage
is approx.,820V
Undervoltage protection 200V Class:Stops when main-circult DC voltage
is approx.,190V.
400V Class:Stops when main-circult DC voltage
is approx.,380V
Momentary power loss
redethru
Stops for 15 ms or more, Byselecting the momentary power loss mode, operation can be continued if power is restored within 2 s.
Cooling fin overheating Protection by thermistor.
Stall prevention Stall prevention during acceleration, deceleration, or runnimg.
Grounding protection Protection by electronic circults. (Overcurrent level)
Charge indicator(internal LED) Lit when the main virvult DC voltage is approx.,50V or more.
Environment Ambient operating temperature -10℃~+45℃(Enclosed wall-mounted type)
-10℃~+50℃(Open chassis type)
Ambient operating humidity 95% RH max.
Storage temperature -20℃+60℃
Appilcation site indoor(no vorrosive gas, dust, etc.)
Altitude 1000m max.
Vibration 10~20Hz, 9.8m/s2(1G) max ; 20~50Hz, 2m/s2(0.2G) max.
