DETAIL 商品详细说明

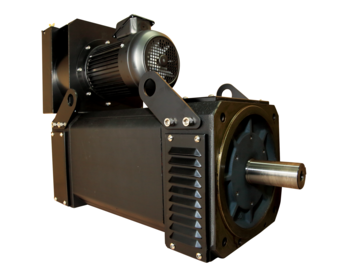

| Product Series |
Rated Speed(RPM) | Rated Output(kW) | Rated Voltage(V) | Rated Current(A) | Rated Torque(N-m) | Rated Torque(Kg-m) | Rotor Inertial(Kg-m²) | Max. Speed(RPM) | Frame Size |
| SVMF IP23 | 500 | 37 | 360 | 83 | 700.3 | 72.1 | 0.9075 | 3500 | SA-180L |
| SVMF IP23 | 1000 | 73 | 360 | 150.3 | 695 | 71.5 | 0.9075 | 3500 | SA-180L |
| SVMF IP23 | 1500 | 110 | 380 | 234 | 694.7 | 71.5 | 0.9075 | 3000 | SA-180L |
| SVMF IP23 | 900/1800 | 75 | 360 | 152 | 788.3 | 81.1 | 0.9075 | 3000 | SA-180L |
| SVMF IP23 | 600/1800 | 45 | 360 | 92 | 709.8 | 73 | 0.9075 | 3000 | SA-180L |
| SVMF IP23 | 500/2000 | 30 | 360 | 92 | 567.8 | 58.4 | 0.9075 | 3000 | SA-180L |
