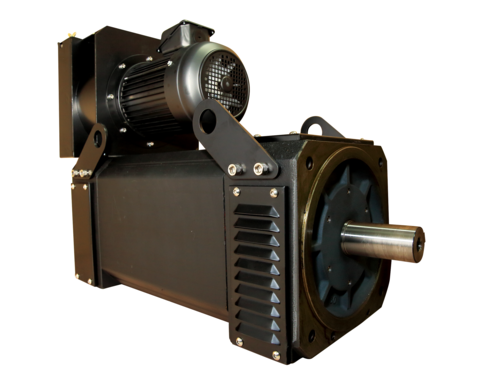

SVMF系列 IP23 SA-280S交流伺服向量馬達


額定輸出:110kW~370kW

代碼 TSVMF-IP23_SA-280S

人氣 628





DETAIL 商品詳細說明
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP23 500 120 360 245 2273 233.9 5.291 3000 SA-280S
 SVMF IP23 1000 250 360 483.6 2368 243.6 5.291 3000 SA-280S
 SVMF IP23 1500 370 380 734 2336 240.4 5.291 3000 SA-280S
 SVMF IP23 900/1800 220 360 447 2313 238 5.291 3000 SA-280S
SVMF IP23 600/1800 125 360 243 1973 203 5.291 3000 SA-280S
SVMF IP23 500/2000 110 360 230 2082 214.2 5.291 3000 SA-280S





Motor(kW) 120 250 370 450 140 300
 Frame Size 280S 280S 280S 280S 280M 280M Contact us
for further
information
 Rated Voltage N/A
 Rated Speed           500                     1000                   1500                   2000                    500                     1000
 Rated Torque kg-m 233.89 243.63 240.36 219.27 272.84 292.33
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 96.4% 96.4% 96.4% 96.4% 96.4% 96.4%
 Max speed Nmax
 Standard bearing
3000 3000 3000
 Weight mass(kg) 1100 1100 1100 1100 1300 1300
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 25.4           50.5                    75.3                     100.7                   25.8                    50.6
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 440 535 165 350 500 630
 Frame Size 280M 280M 280L 280L 280L 280L Contact us
for further
information
 Rated Voltage N/A
 Rated Speed          1500                   2000                     500                     1000                   1500                   2000
 Rated Torque kg-m 285.7 260.66 321.61 341.09 324.81 306.97
 Rated Current N/A N/A N/A N/A N/A N/A
 Efficency 96.4% 96.4% 96.7% 96.7% 96.7% 96.7%
 Max speed Nmax
 Standard bearing
3000 3000 3000
 Weight mass(kg) 1300 1300 1450 1450 1450 1450
 Mornent of inertia J kg㎡ N/A N/A N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 75.4          100.8                    25.9                    50.8                     75.8                   100.6
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A N/A

Motor(kW) 180 385 550 700
 Frame Size 280X 280X 280X 280X     Contact us
for further
information
 Rated Voltage N/A
 Rated Speed            500                     1000                   1500                   2000
 Rated Torque kg-m 350.83 375.17 357.32 341.06
 Rated Current N/A N/A N/A N/A
 Efficency 96.7% 96.7% 96.7% 96.7%
 Max speed Nmax
 Standard bearing
3000 3000          3000
 Weight mass(kg) 1600 1600 1600 1600
 Mornent of inertia J kg㎡ N/A N/A N/A N/A
 Protection IP23
 Rated Frequency F rated(HZ) 25.4           50.3                    75.6                    100.4
 Fan Rated Voltagt UL
 Rated Current Frequency FL
N/A N/A
