SVMJ Series IP54 SVM-90M AC Servo Vector Motor  |產品介紹|English|AC Servo Motor

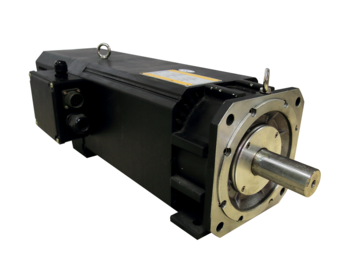

SVMJ Series IP54 SVM-90M AC Servo Vector Motor


Rated Output:1.5kW~3.7kW

代碼 ESVMJ-IP54_SVM-90M

人氣 630





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 1000 1.5 380 3.7 14.2 1.45 0.0098 8000 SVM-90M
 SVMF IP54 1500 2.2 380 5.5 13.8 1.41 0.0098 8000 SVM-90M
 SVMF IP54 2000 3.7 380 9.2 17.5 1.79 0.0098 8000 SVM-90M
