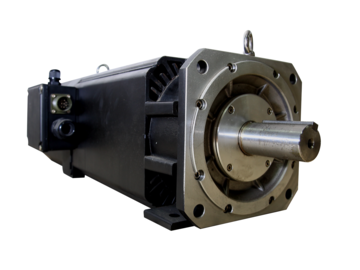

SVMF Series IP54 SF-180L AC Servo Vector Motor


Rated Output:37kW~110kW

代碼 ESVMF-IP54_SF-180L

人氣 623





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 500 37 360 83 700.3 72.1 0.9075 3500 SF-180L
 SVMF IP54 1000 73 360 150.3 690.9 71.1 0.9075 3500 SF-180L
 SVMF IP54 1500 110 380 234 694.7 71.5 0.9075 3500 SF-180L
