SVMF Series IP54 SF-160M AC Servo Vector Motor  |產品介紹|English|AC Servo Motor

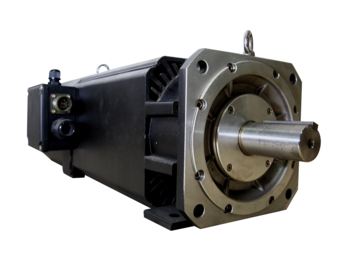

SVMF Series IP54 SF-160M AC Servo Vector Motor


Rated Output:9kW~28kW

代碼 ESVMF-IP54_SF-160M

人氣 630





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 500 9 360 20 170.4 17.5 0.2054 4500 SF-160M
 SVMF IP54 1000 20 360 41.4 189.3 19.5 0.2054 4500 SF-160M
 SVMF IP54 1500 28 380 54.9 176.7 18.2 0.2054 4500 SF-160M
