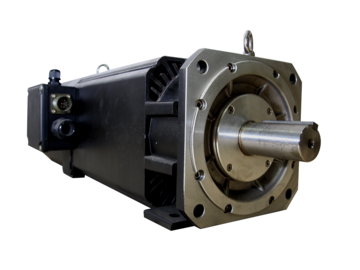

SVMF Series IP54 SF-160L AC Servo Vector Motor


Rated Output:11kW~37kW

代碼 ESVMF-IP54_SF-160L

人氣 683





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP54 500 11 360 25 208.2 21.4 0.2427 4500 SF-160L
 SVMF IP54 1000 25 360 51.8 236.6 24.3 0.2427 4500 SF-160L
 SVMF IP54 1500 37 380 71.3 215.4 22.2 0.2427 4500 SF-160L
