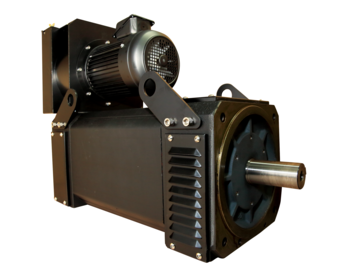

SVMF Series IP23 SA-180S AC Servo Vector Motor


Rated Output:30kW~75kW

代碼 ESVMF-IP23_SA-180S

人氣 658





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP23 1000 50 360 106.9 473.3 48.7 0.6466 3500 SA-180S
 SVMF IP23 1500 75 380 157.2 473.9 48.8 0.6466 3500 SA-180S
 SVMF IP23 900/1800 55 360 111 578.3 59.5 0.6466 3500 SA-180S
 SVMF IP23 600/1800 30 360 62 473.2 48.7 0.6466 3500 SA-180S
