SVMF Series IP23 SA-180M AC Servo Vector Motor  |產品介紹|English|AC Servo Motor

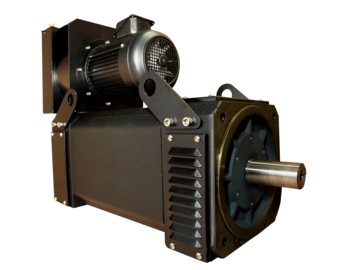

SVMF Series IP23 SA-180M AC Servo Vector Motor


Rated Output:22kW~90kW

代碼 ESVMF-IP23_SA-180M

人氣 599





DETAIL Description of the Product
   Product
        Series
Rated Speed(RPM) Rated Output(kW) Rated Voltage(V) Rated Current(A) Rated Torque(N-m) Rated Torque(Kg-m) Rotor Inertial(Kg-m²) Max. Speed(RPM) Frame Size
 SVMF IP23 500 30 360 67 567.8 58.4 0.7369 3500 SA-180M
 SVMF IP23 1000 60 360 128.1 568.6 58.5 0.7369 3500 SA-180M
 SVMF IP23 1500 90 380 193.4 568.8 58.5 0.7369 3500 SA-180M
 SVMF IP23 600/1800 37 360 75 583.6 60 0.7369 3500 SA-180M
 SVMF IP23 500/2000 22 360 60.2 416.4 42.8 0.7369 3500 SA-180M
